KFI Products Actuator Backlit Dash Rocker Switch – Upgrade Kit

Description

• Functions as an upgrade kit for the KFI V-Plow System with the All Control Hand Held Remote and are interested in adding Dash Rocker Switches
• Kit users will be able to operate plow using both the dash-mounted switches and the handheld control
• Operates a single Plow Actuator (part #4501-1126)
• Circuit type (ON)-OFF-(ON)
• Double pole switch
• Max Current Rating 20A / 12VDC
• A straight blade requires a single and the Pro-V Plow System would require two of these kits

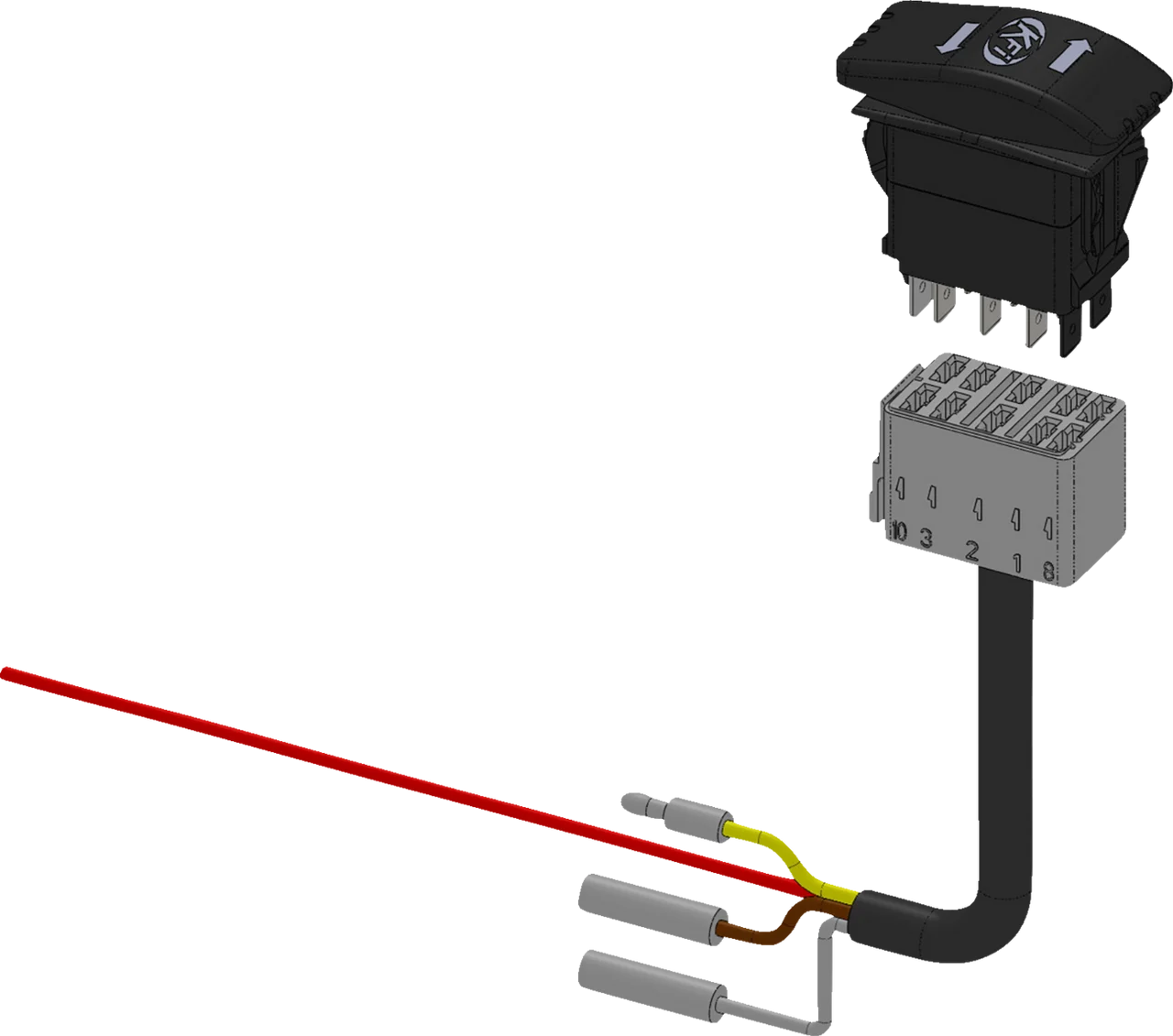

• Blue backlit intermittent rocker switch with harness

Notes

• Requires mounting hole 0.830″ X 1.450″ (standard on most UTVs).
• Works with panel thickness 0.030″ to 0.250″.
• Does NOT work with Wire Harness part #4501-1120.
