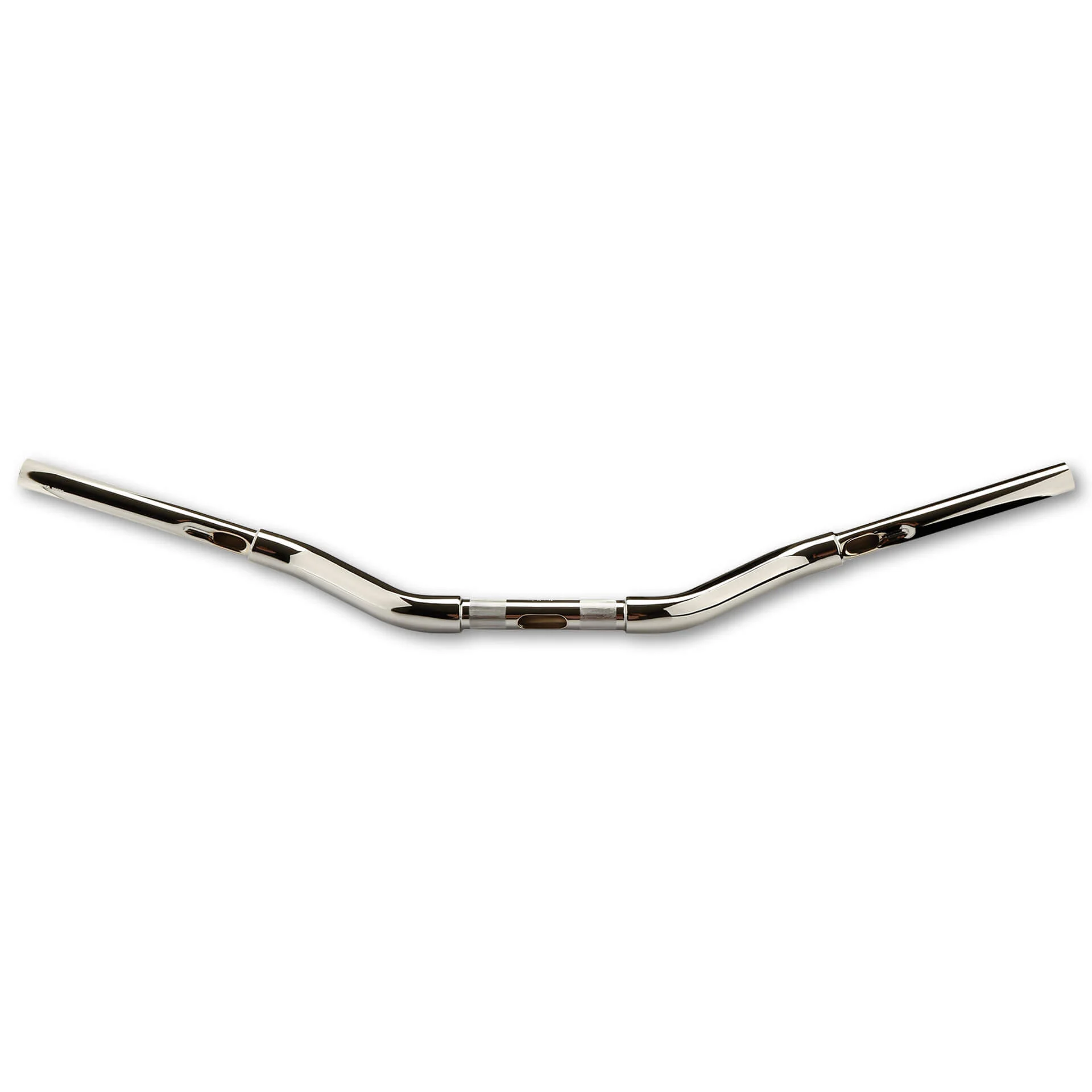

FEHLING FAT SUPERBIKE 1 1/4 Zoll, 3LL

Description

Fat Super Bike Bar handlebar, 1 1/4 inch for chopper and cruiser of the premium brand FEHLING
handlebar for chopper and cruiser made of tube 31.75 mm Ø (1 1/4 inch) with stepped grip ends and clamping area 25.4 mm Ø (1 inch). Length of the handle ends 210 mm.
With parts certificate according to § 19 para. 3
Identification: FD10HDF
3 hole internal cable routing:
– 1 slotted hole 13 x 30 mm each in the cable notch in the area of the handles
– 1 slotted hole 13 x 40 mm centered in the area of the clamping
Dimensions:
a)= 910 mm
b)= 95 mm
c)= 120 mm
d)= 700 mm
e)= 250 mm
Scope of delivery: 1 piece
Note:
Accessory handlebars are supplied without holes for locking the switch units, as these are positioned differently depending on the motorcycle model.
The drilling of the handlebar is allowed. To do this, align the new handlebar on the vehicle. Now mount the switch units for testing and note the clearance to the tank at full steering angle.
We recommend to use the drilling template for a good result.
